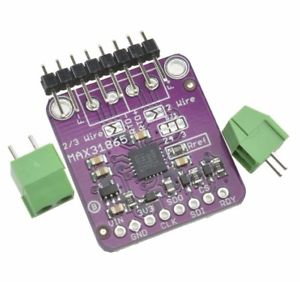

31865 MAX31865 Platinum Resistance Temperature Sensor RTD PT100-PT1000 in PakistanДодај у корпу
B-2188 VOLTAGE PROTECTOR INTELLIGENT SWITCH

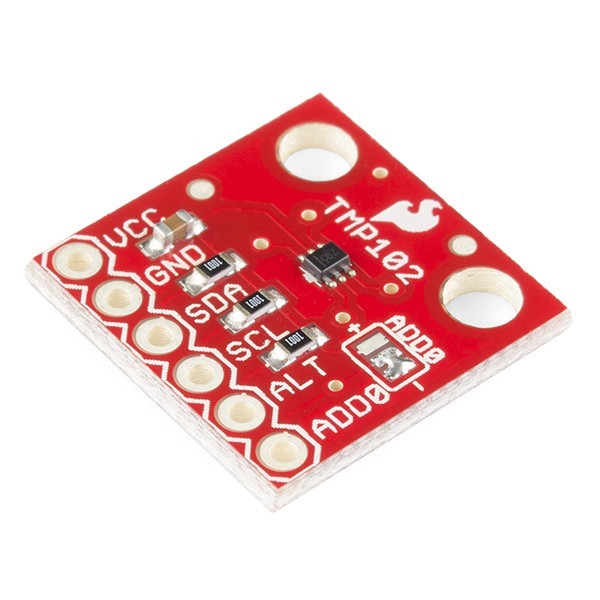

This is a breakout board for the incredibly small TMP102 digital temperature sensor. The TMP102 is a digital sensor (I2C a.k.a. TWI), has a resolution of 0.0625°C, and is accurate up to 0.5°C. This is a very handy sensor that requires a very low-current. Communication with the TMP102 is achieved through a two-wire serial interface. There is no on-board voltage regulator, so supplied voltage should be between 1.4 to 3.6VDC. Filtering capacitors and pull-up resistors are included as shown. Features Uses the I2C interface 12-bit, 0.0625°C resolution Typical temperature accuracy of ±0.5°C 3.3V sensor Supports up to four TMP102 sensors on the I2C bus at a time Documents Schematic Eagle Files Hookup Guide Datasheet (TMP102) Arduino Library GitHub Replaces: SEN-9418 Related

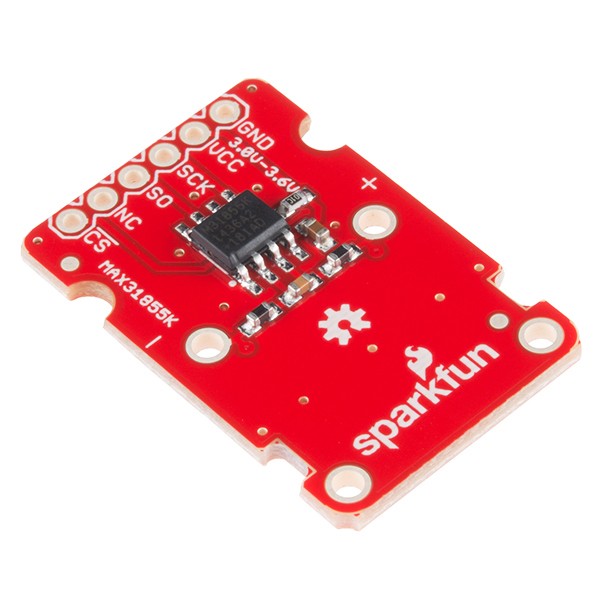

SparkFun Thermocouple Breakout – MAX31855KДодај у корпу
5K Ohm Precision NTC Thermistor Temperature Sensor in PakistanДодај у корпу
